Curtain Machinery

Multipleat B872-5 65mm Curtain Taper Multipleat B872-5 65mm Curtain Taper

The Multipleat B872 wide gauge curtain tape machine. Converted to 65mm gauge for inserting curtain header tape on velvet or cotton print type fabrics. A close coupled puller feed unit is fitted. A full range of guides and reel holders are available

Semi Automatic Side Hemming Rig Semi Automatic Side Hemming Rig

Different types of hemming machines can be installed into the frame for several operations

The frame is built to the customers' requirements up to fabric widths of 120"

It features a rear frame (behind the operator) which feeds fabric in a relaxed state to the centre unit and sewing machine. The fabric can be from a roll or from a barrow. Fabric tension is under constant electronic check.

The centre unit consists of the sewing machine and support table which is the width of the frames.

The front frame (in front of the operator) has a variable speed puller feed. This is designed to the fabric width to assist the sewing machine feed taking the fabric away efficiently. It has forward, stop and reverse for ease of operator use.



Kansai Special DFB-1412P-MR-E Knife Pleat (Electronic) Kansai Special DFB-1412P-MR-E Knife Pleat (Electronic)

Used to pleat curtains or marquee linings
Pneumatic pleating action
Pleats are programmable to customers’ requirements.
For pleating net curtains and voile onto header tape.
Fitted with close coupled puller feed unit

Double Headed Semi Automatic Side Hemming Rig Double Headed Semi Automatic Side Hemming Rig

An adjustable width semi automatic rig that can hem both sides of a length of fabric in one operation

The frame is built to the customers' requirements up to fabric widths of 120"

It features a rear frame (behind the operator) which feeds fabric in a relaxed state to the centre unit and sewing machine. The fabric can be from a roll or from a barrow. Fabric tension is under constant electronic check.

The centre unit consists of the sewing machine and support table which is the width of the frames.

The front frame (in front of the operator) has a variable speed puller feed. This is designed to the fabric width to assist the sewing machine feed taking the fabric away efficiently. It has forward, stop and reverse for ease of operator use.



Kansai Special DLR-1502P-MR-E Box Pleat Kansai Special DLR-1502P-MR-E Box Pleat

Twin needle double chainstitch box pleat machine for box pleating curtains, drapes, table skirts, pelmets, valances and bed coverings.

- Fully programmable forward and reverse pleats with pneumatic pleating action.
- No need for cams. Program by electronic control.
Innovative pin system for pleating difficult fabrics

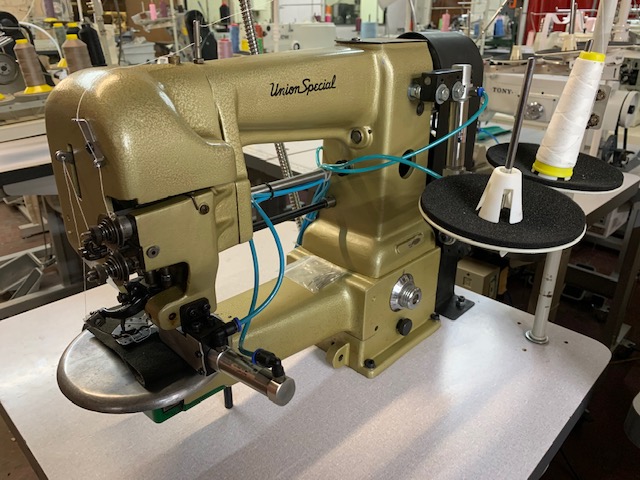

Automatic Blind Spot Tack Machine Automatic Blind Spot Tack Machine

Used for sewing blind spot tacks on mitred corners on curtains or blind spot tacks on ties. The mechanical knives, clutch and stopping mechanism have been removed to allow pre-determined stitch count programming. Machine fitted with pneumatic start and fully automatic stitch count, thread trimmer, thread wiper and bed drop.

Brother B720-NFSB-TB needle feed synchronized binder Brother B720-NFSB-TB needle feed synchronized binder

A single needle, needle feed lockstitch machine fitted with a synchronized binding attachment to produce curtain tie-backs. The binding attachment and gauge fittings are available in kit form and will fit to existing Brother B790 and B791 series needle feed lockstitch range of machines.

Double Chainstitch Curtain Taper Double Chainstitch Curtain Taper

A twin needle double chainstitch machine used for attaching 6" curtain header tape.

This tape gives a larger scale of adjustment than a conventional 3" tape.

Twin needle lockstitch 138mm gauge Twin needle lockstitch 138mm gauge

A custom made 138mm gauge twin needle - needle feed lockstitch machine with large bobbins
Used for attaching 6" curtain header tape or applications requiring a wide gauge lockstitch
This tape gives a larger scale of adjustment than a conventional 3" tape
Supplied complete on single phase unit stand with servo motor
Fitted with extended Racing PL puller feed unit
Overhead tape dispenser with adjustable guides

Eisenkolb PFA-2000L Eisenkolb PFA-2000L

Eisenkolb PFA-2000L curtain pinch pleat machine with Microflex® curtain hook feeder

Brother BAS-311F-L1A tacking machine

Single phase

Can be programmed for pleat sizes of 2, 3, 4 & 5"



Brother V92-PR Piper Ruffler Brother V92-PR Piper Ruffler

The Brother V92 top feed five thread piper ruffler overlock. Used in the production of curtains.

The machine will sew the piping cord into the binding, attach to the body fabric and ruffle in one operation.

Maximum pipe is 5mm with top and bottom feed dogs feeding both sides of the pipe for the ultimate finish.

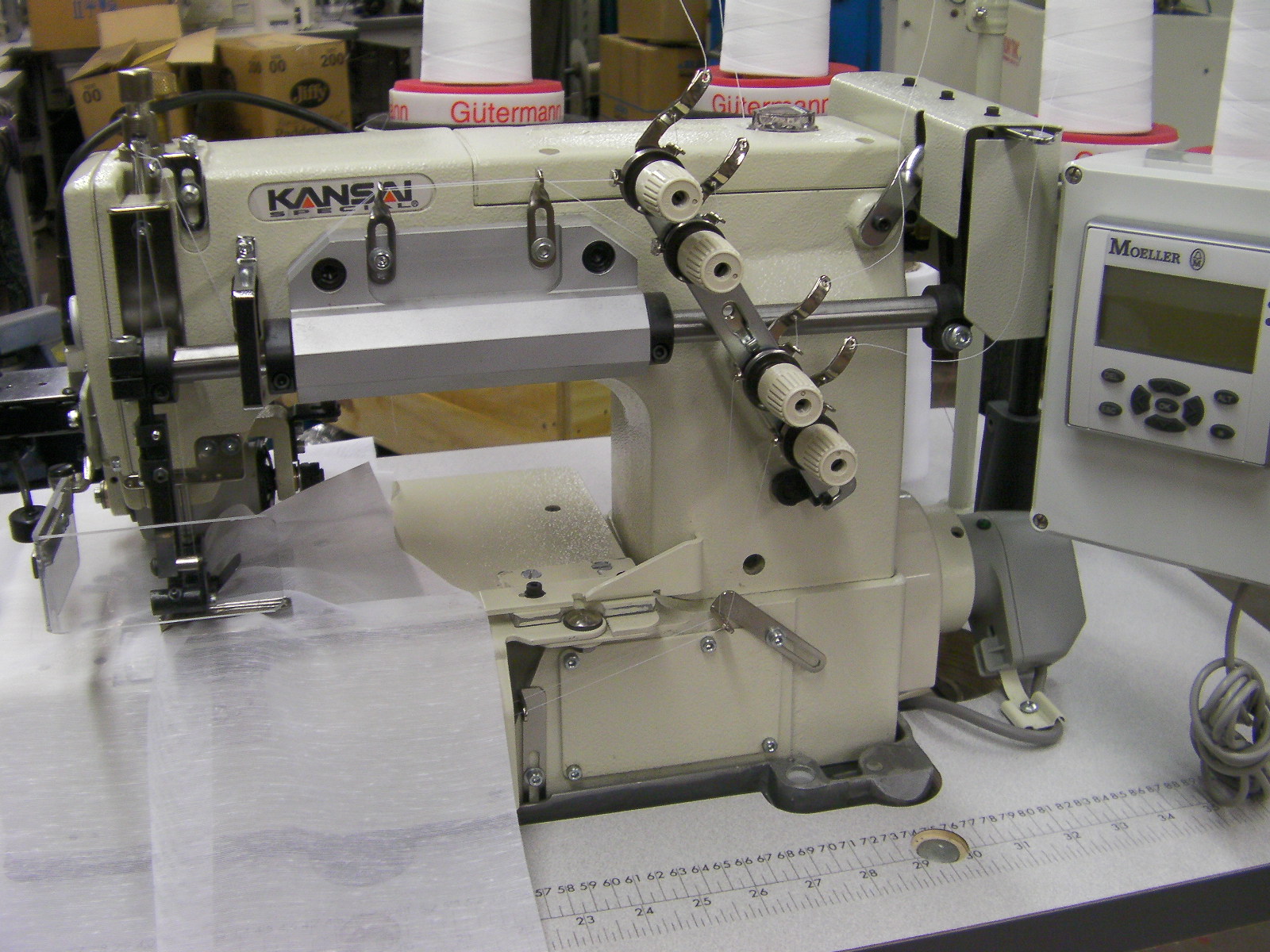

Kansai Special DFB-1402P-MR-E Cluster Pleat Kansai Special DFB-1402P-MR-E Cluster Pleat

Used for the high speed pleating of thin/mediumfabrics for household textiles or clothing.
Pleats can be bunched or grouped together
Two needle chainstitch
Number of stitches per pleat is programmable
Number of pleats in group is programmable
Flat sewing distance is programmable
